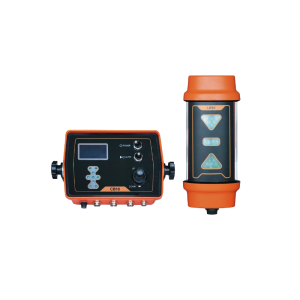

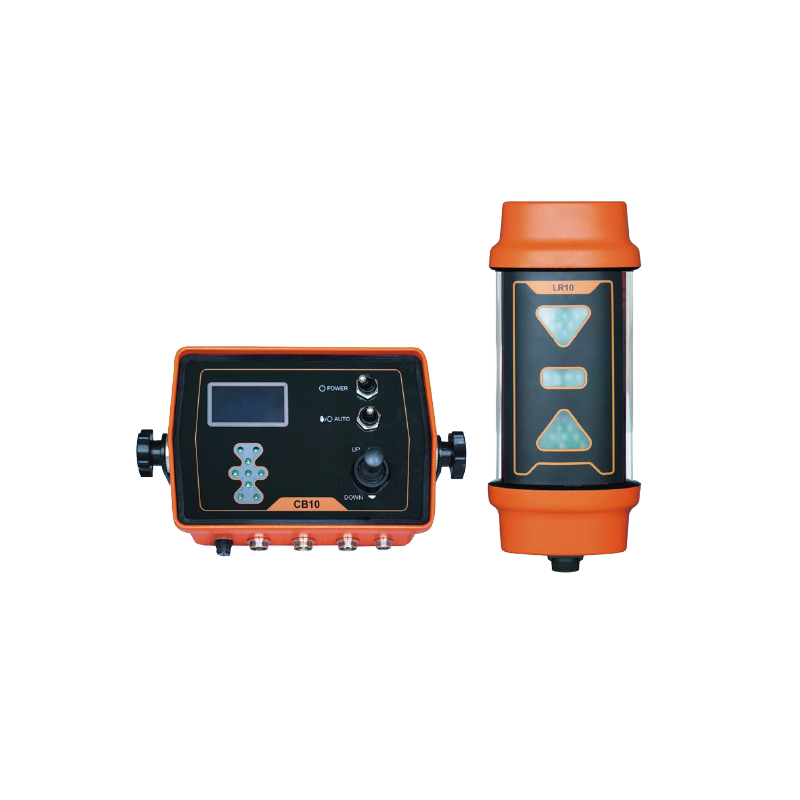

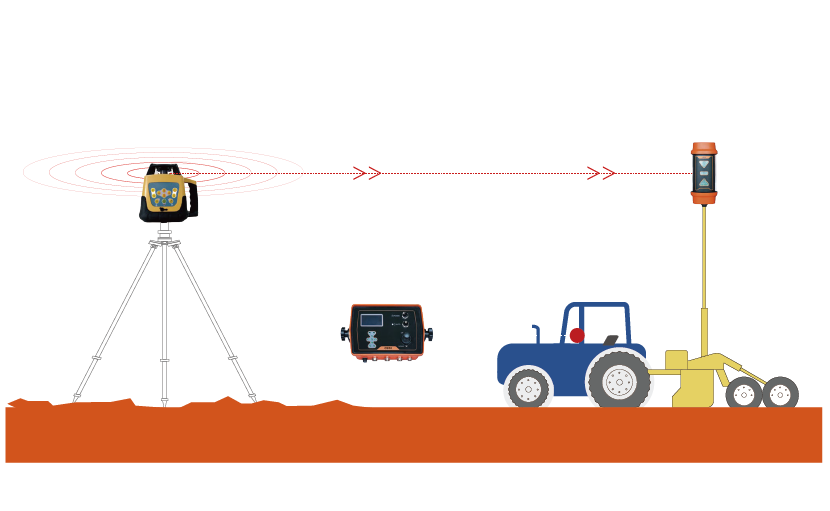

TZ10 Laser Land leveling System
TZ10 land leveling system is developed for land leveling application which is based on laser and electric hydraulic control. The system is high accuracy, high precision of EHC, stableperformance, easy operation, dust and water proof, shockproof and durable, It is used for high precision land leveling, the accuracy is +/-2cm, it helps for water-saving irrigation, uniformly fertilization and output increasing.
Single laser base system
Real-time Height difference
SlopingLeveling
Function
Auto self-leveling
Easy to install
Compatible with other laser transmitter
LCD display screen
High light LED clearly visible
Water proof with IP54
System components

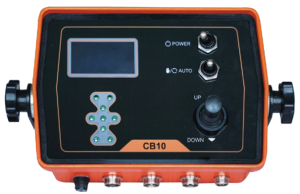

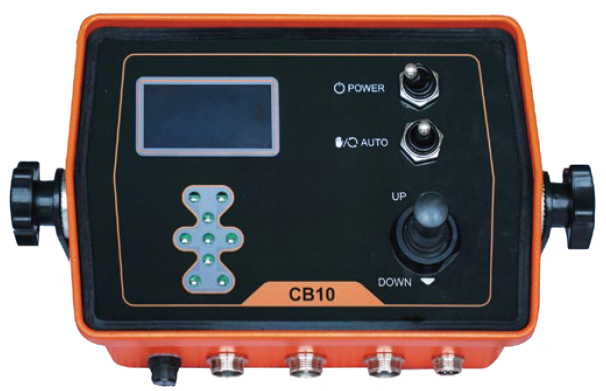

Controller
Parameter （Connection Interface） Power / Control / Receiver 1pc Operating Temp : 40°C to 71°C Low Electricity Consumption Self-luminous OLED Display Screen Storage Temp : -55°C to 85°C Controlling Handle Gross Weight : 6kg Accuracy of Leveling : ±2cm Wide Viewing Angle High Contrast Dimension : 41cmx35cmx20cm

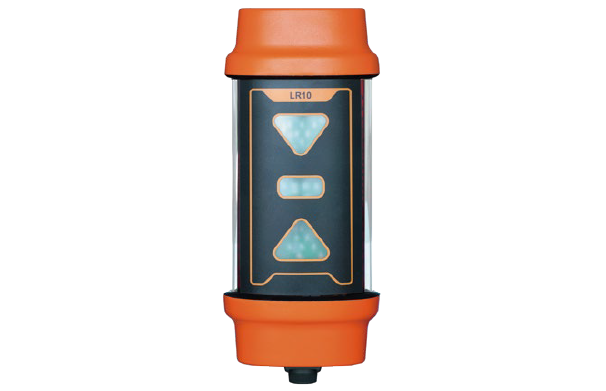

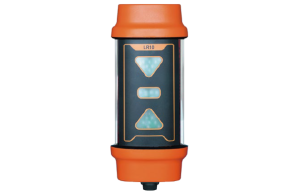

Laser Receiver
Angle for Receiving Laser : 360° Detection Resolution: ±3mm Detection Windowr: 200mm Vertical LED Indicator: Yes Interface: RS-232 or RS-485 CAN J1939 (option) Water/Dust Proof: IP68 Power Source: Power Supply Operating Temperature: -40°C to 71°C Storage Temperature: -55°C to 85°C Electric Input: 9v to 16v Dimension: 41cmx35cmx20cm Weight: 4kg

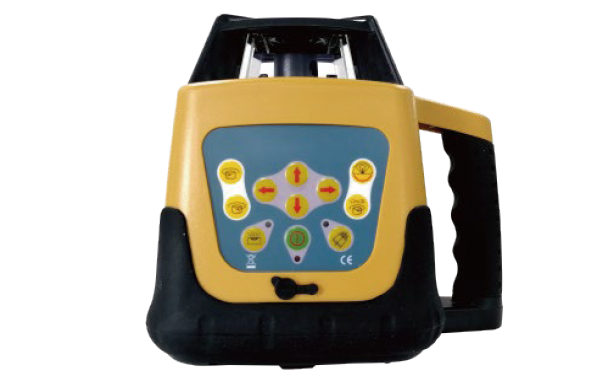

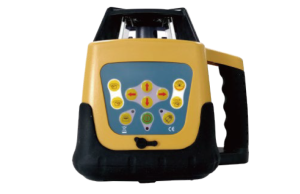

Laser Transmitter
Laser Source : 2.5mW laser diode Operating Temperature : -20°C to 70°C Dimension : 44cmx28cmx38cm Operating Range (diameter) : 600m Storage Temperature : -20°C to 80°C Self-leveling Range : ±5° Power Source : NI-MH rechargeable battery,continuously work for 10 hours Self-leveling Accuracy : ±0.05mm/m Rotation : 600 rpm
Applications
Dry Land Leveling
Paddy Field Work
Wasteland Reclamation
Conversion of SlopesInto Terraces
